Quick Details

  • Type: Gps Tracker
  • Use: Automotive
  • Screen Size: no screen
  • Function: lock and unlock
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Jointech
  • Model Number: JT701
  • Warranty: 1 Years
  • type: GSM tracker, 3G tracker
  • Usage: container and trucks tracking and door control
  • Battery: 15600mAh
  • Charging: by external charging cable, 5V. 2A
  • Internet: GSM quad band, 3G WCDMA
  • Electronic rope length: 0.35~20m, or even longer
  • material: engineering plastic
  • standard accessories: RFID cards, electronic rope.
  • Unlock method: by swipping RFID card, by remote command
  • function developlent: 2 sim card ; temperature sensor

Packaging & Delivery

Packaging Details: Carton / wooden box
Delivery Detail: 1 - 3 days
Product Description

Product Application

Container seal GPS tracker JT701 is an new design product based on the market of container gps tracking, van type trucks tracking. It supported by GSM network, and work under 2 kinds of modes: tracking mode with continuous uploading GPS position; standby mode with 4 time points GPS locating. It's waterproof IP67, anti water and dust, can used outdoor at different weather.

SPECIFICATIONS FOR CONTAINER SEAL TRACKER JT701







Parameters
Dimension
185×70×47mm
Average working current
<90mA
Average standby current
<0.1mA
Weight
800g (with standard accessories)
Material
Engineering plastic
Band
850/900/1800/1900MHz
Protection Grade
IP67
Working temperature
-20 to +60°C
Electronic rope length
0.35m to 40m

Main Features

1.Unique Design with Unlock by RFID tags/SMS password/Application command with password.

2. Big capacity battery 15600mAh, Long working time
3. Built-in 2G GSM Module, Quad band, Remote online monitor. 3G WCDMA is optional
4. Locating by GPS, LBS, real time Global Positioning and Base station locating supported
5. Safety Monitoring, Alarms For illegal unlocking
Details

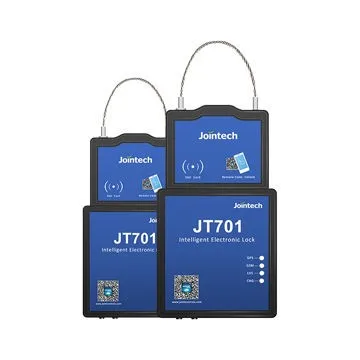

Container lock device

1. 2G GSM

2. 3G WCDMA

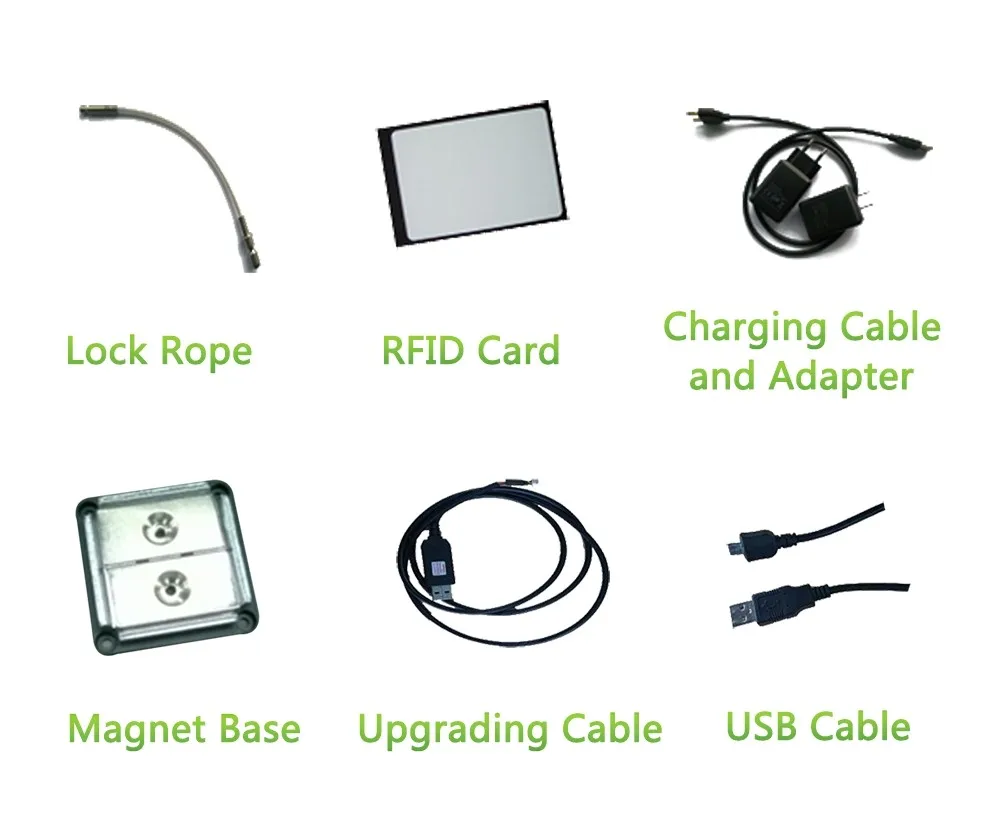

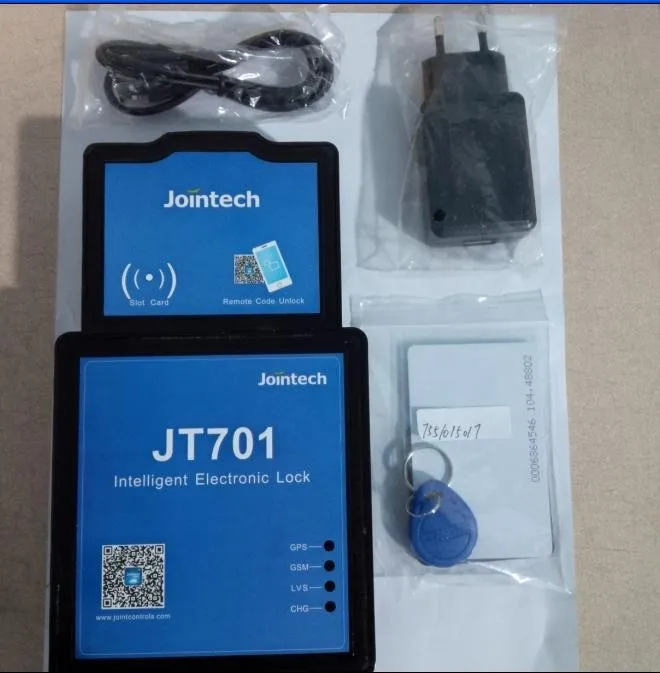

accessories

1. Electronic rope length can be customized

2. RFID cards

3. charging cable with AC adaptor (optional)

4. magnet base (optional)

5. upgrade cable(optional)

6. USB cable/configure cable (optional)

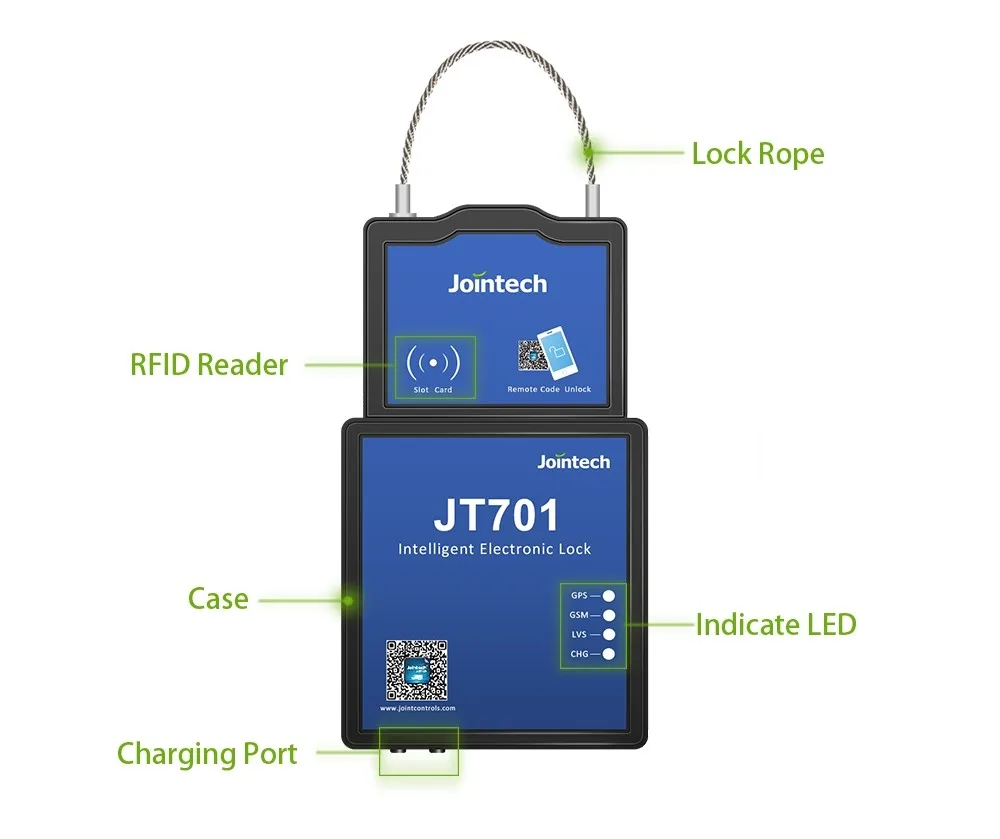

Container GPS lock GPS tracker, waterproof IP67

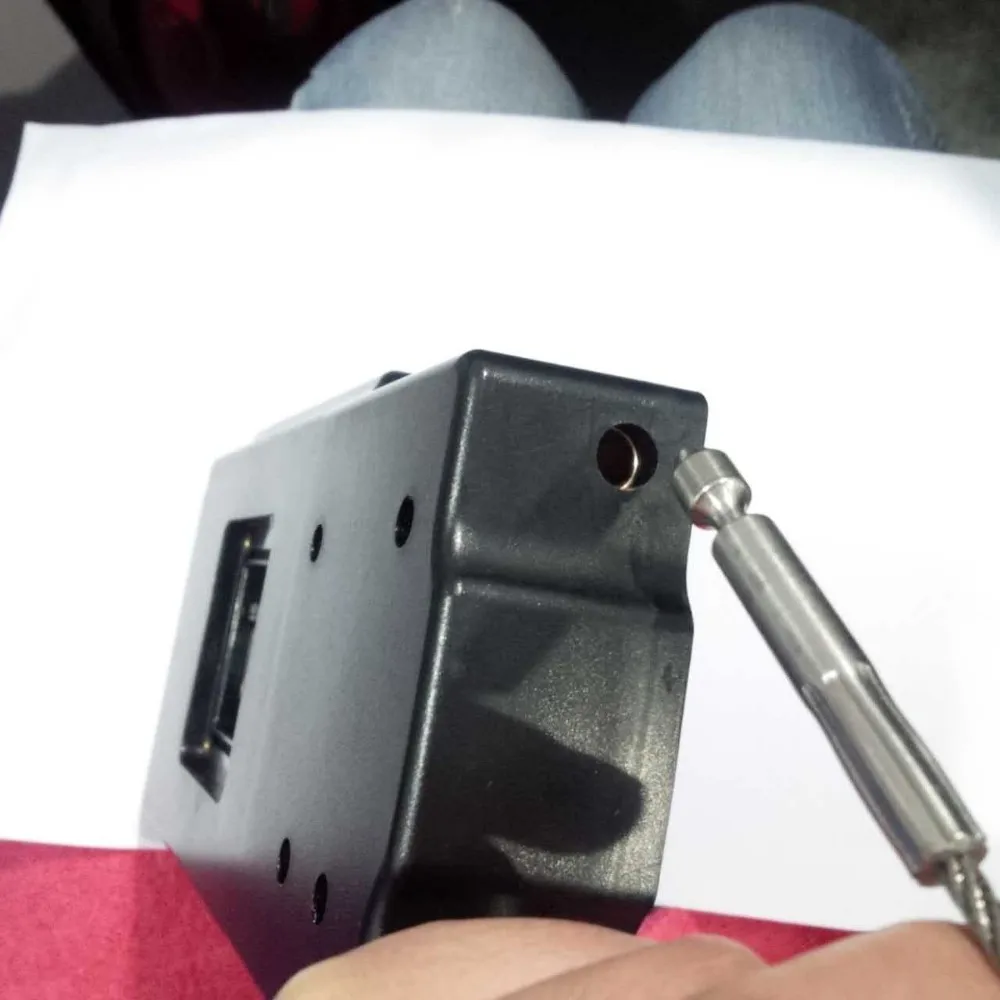

stainless steel head

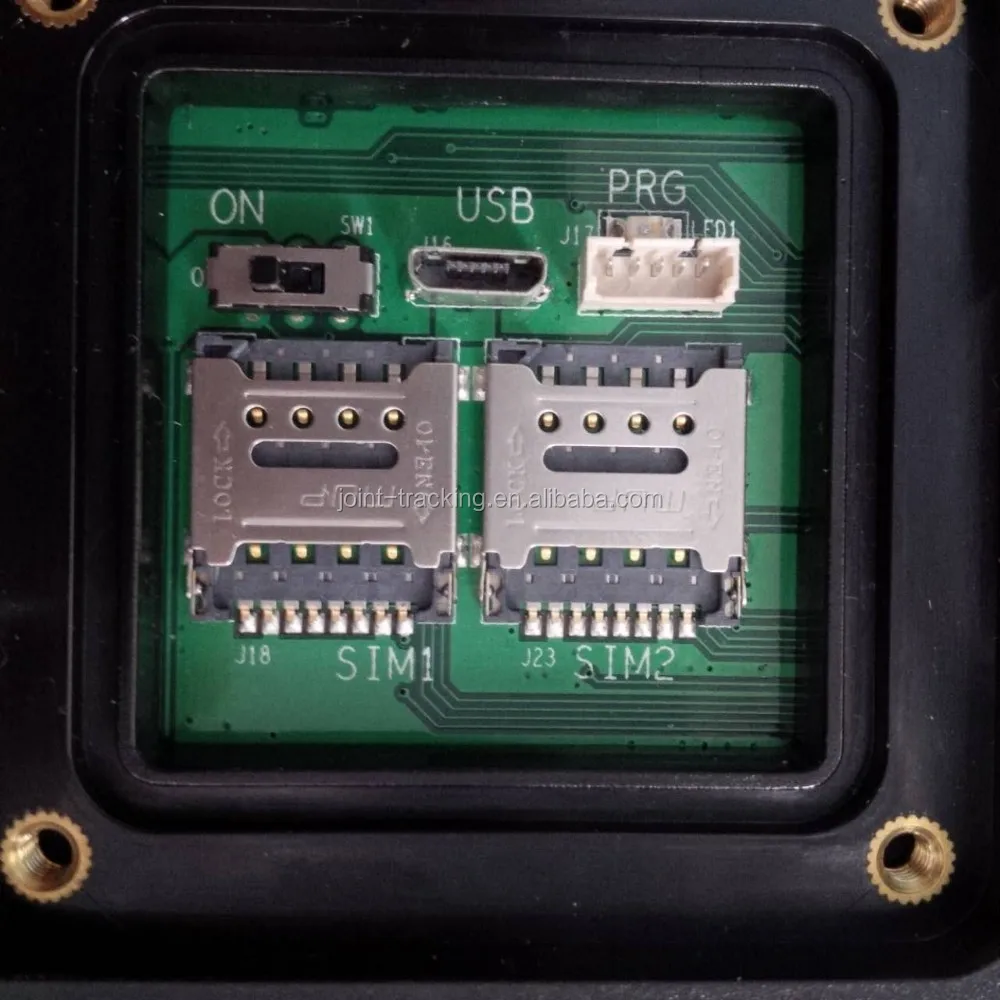

dual sim cards lot. automatically choose by the internet availability

SPECIFICATION OF CONTAINER GPS LOCK TRACKER JT701
Material
Engineering plastic + Stainless steel
Protection Grade
IP67
GPS antenna
Built-in
Working temperature
-20 - +60
GSM frequency
 2G version : 850/900/1800/900Mhz
 3G version:
Dual-Band UMTS/HSDPA 850/1900MHz,Quad Band GSM /GPRS/EDGE 850/900/1800/1900MHZ
Wake up mode
Call/SMS/Swiping card/vibration/E-Rope cut off
Dimension
195*114*37mm
Weight
700g(including standard accessories)

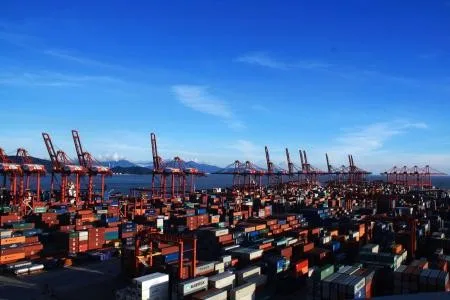

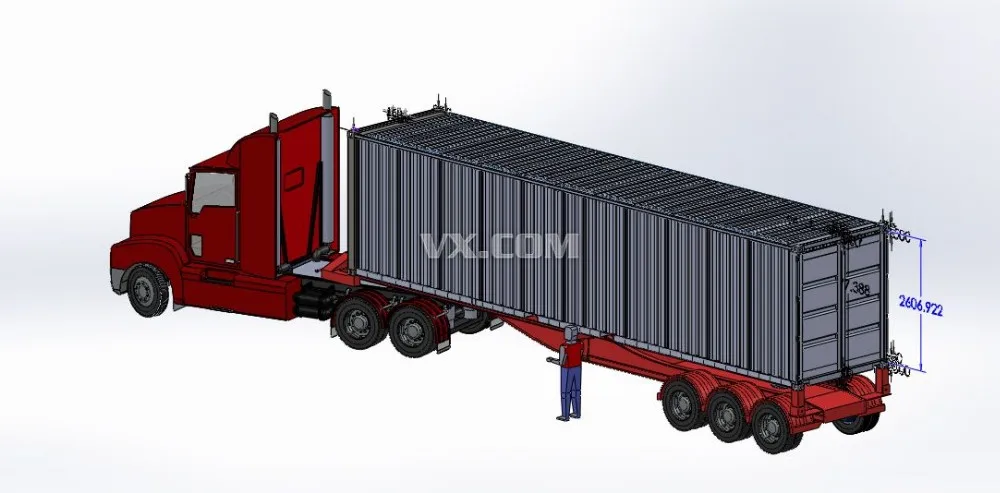

Application

Containers


Van type trucks

Assets / cargo


Packing & Delivery

Wooden box

carton box

wooden box & carton box

Our Company

SHENZHEN JOINT TECHNOLOGY CO.,LTD

Shenzhen Joint Technology Co., Ltd was established in 2006, registered trademark ‘jointech’, and formally listed on three new board in February 2016 , with stock code: 835897.

The company's main business covers three major remote asset management segments,including: 1. online vehicle and fuel consumption monitoring and management services,for vehicle operator companies who concern fuel consumption and vehicle position; 2.the whole process of container and cargo monitoring and management ,for clients who have great concern to the cargo security and transportation; 3. remote monitoring and operation of network services, for the energy and power equipment manufacturing and maintaining company.
