Container GPS lock JT701 to lock/unlock by RFID in spot and remotely by SMS/GPRS

FOB Reference Price:Get Latest Price
$150.00 - $280.00 / Units | 1000 Unit/Units (Min. Order)
Memory Capacity:
None
Report Suspicious Activity
Overview
Quick Details
Type:
Gps Tracker
Use:
Automotive
Function:
Other
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Jointech
Model Number:
JT701
Warranty:
1 Years
Dimension:
195*114*37mm
Platform:
Alibaba Cloud
Supply Ability
Supply Ability:
1000 Unit/Units per Week
Packaging & Delivery
Packaging Details
carton package, size:23*17*9.5cm
Port
Shenzhen
Video Description
JT701 Introduction

Electronic cargo GPS Lock JT701

Electronic cargo GPS Lock JT701 is a sophisticated tracking and asset management applications, provides enhanced functionality, easy installation, and caters to a wide range of applications.

JT701 intelligent GPS lock can greatly reduce the financial losses incurred by the difficulty in tracking valuable equipment such as trailers, containers, construction machines and other valuable mobile and fixed assets.

Features:

Real-time monitoring of lock status

Multiple unlock/lock options (RFID,GPRS,SMS)

Real-time Alerts for Cargo Tampering(Rope cutting alarm, Back cover open alarm)

Long standby for 60 days(15000mAh)

Application:

Cargo Logistics

Equipment Rental

Customs Supervision

Commercial/Retail

Parameters of JT701

Type
Description








Basic

Function
Transmission Mode
TCP
Data automatic upload
Time interval
Locating mode
GPS
Vibration detecting
Built in 3G sensor
Lock status monitoring mode
Real time monitoring
Unlock
RFID/Remote password
Wake up mode
Call/SMS/Swiping RFID card/ Vibration/ E-string brake



Alarm
E-String brake alarm
Swiping card alarm
Unlock alarm
Wrong password alarm
Geofence alarm










Parameters
Dimension(L×W×H)
195mmx114mmx37mm
Weight
700g(includes standard accessories)
Material
Engineering plastic
Built-in battery
15000mAh rechargeable Li-ion
Working temperature
-20℃ - +60℃
Storage temperature
-40℃ - +80℃
Relative humidity
5% - 99%
Protection grade
IP67
Average standby current
Less than 0.1 mA
Average working current
Less than 90 mA
Backup battery
8.4V 400 mAh NI-MH battery
GPS antenna
embedded
GSM frequency
Quad Band: 900/1800/1900Mhz

23cm (L) * 17cm (W) * 10 (D)

Packing details:

1 unit / carton

2KG / carton

50cm (L) * 39cm (W) * 31 (D)

Packing details:

15 units / carton
20kg / carton

93cm (L) * 54cm (W) * 62 (D)

Packing details:

150 units / box
200kg / box

Certifications

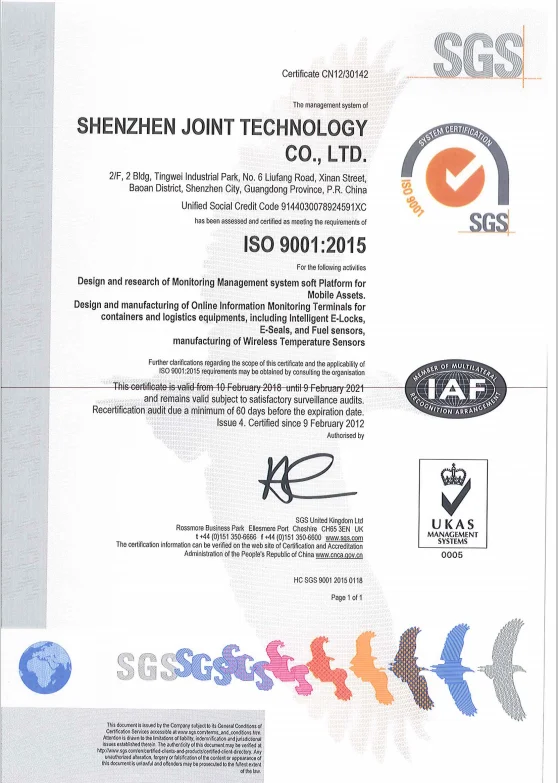

ISO 9001:2015

CE certification

FCC certification

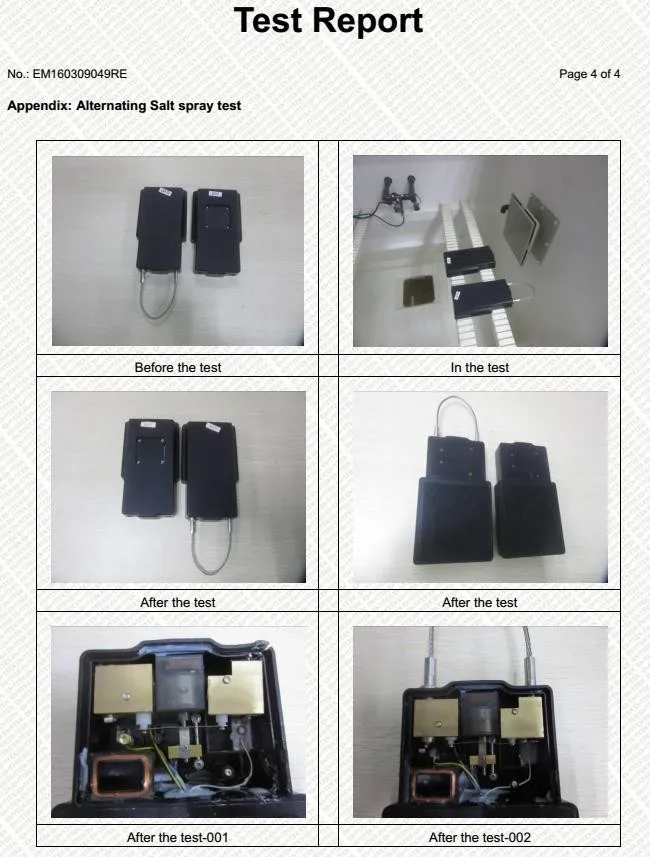

Intelligent Electronic Lock JT701 Alternating Salt Spray Test

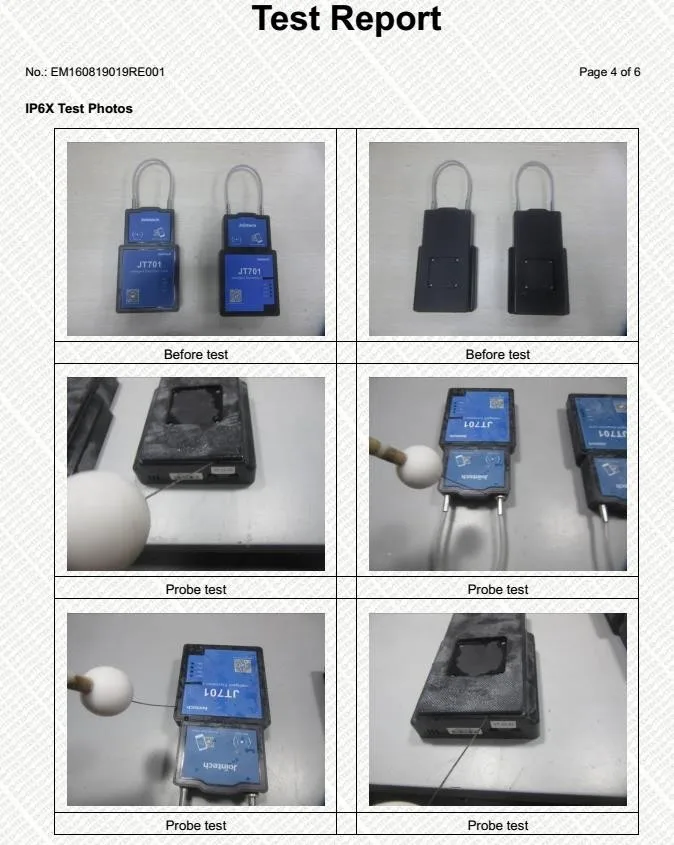

Intelligent Electronic Lock JT701 IP6X Test

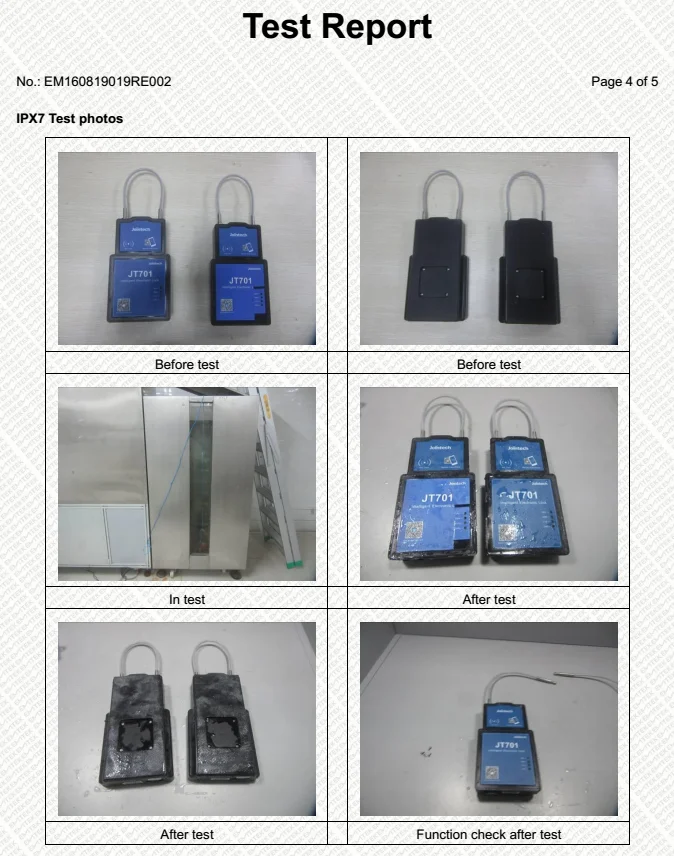

Intelligent Electronic Lock JT701 IPX7 Test

Intelligent Electronic Lock JT701

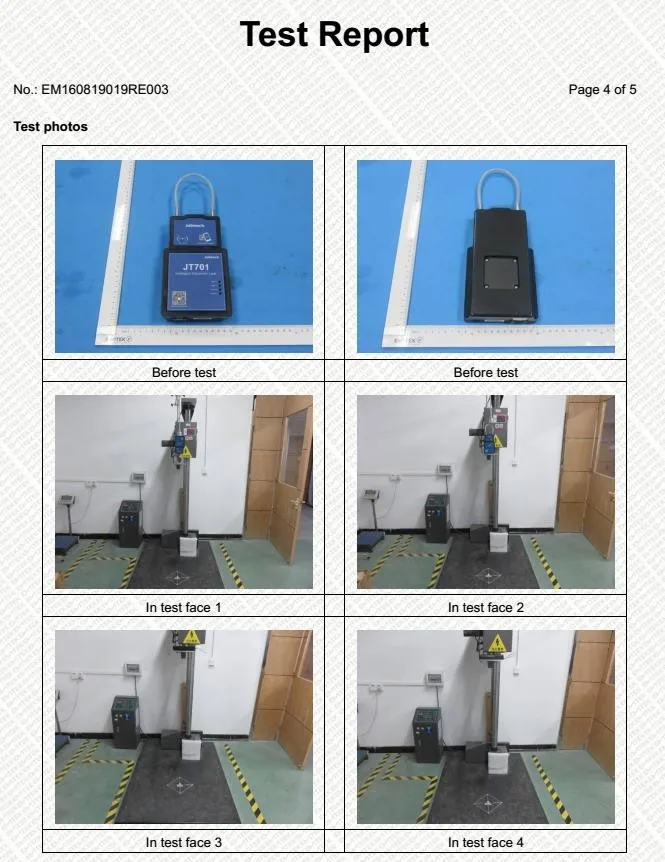

Drop Test Report

Intelligent Electronic Lock JT701

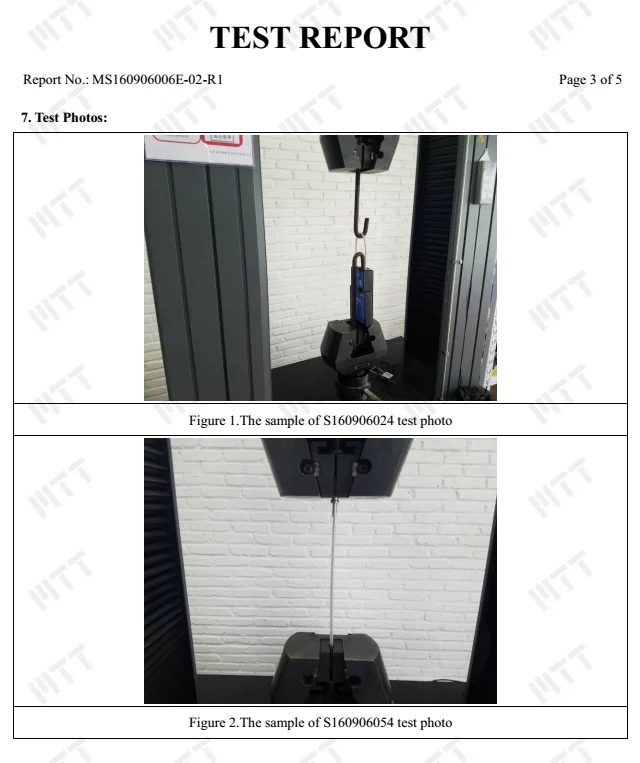

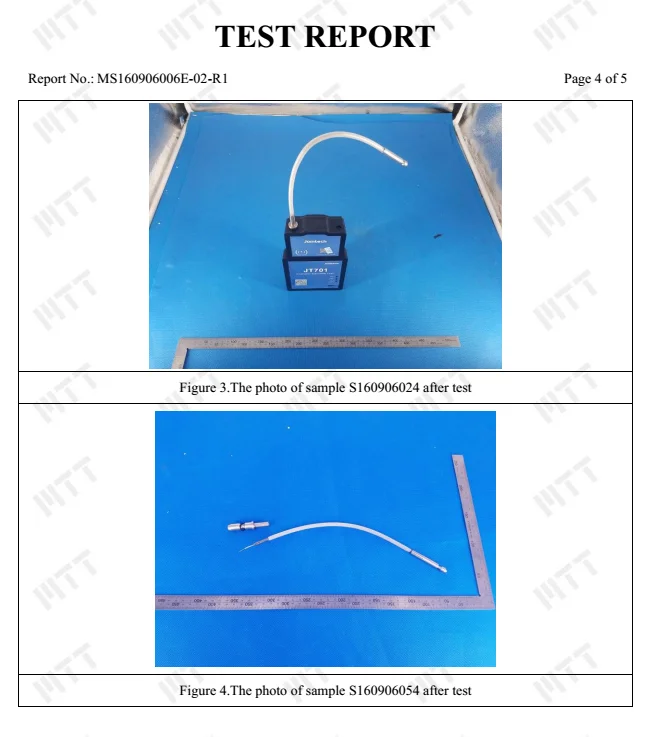

Tensile Test

Intelligent Electronic Lock JT701

Tensile Test

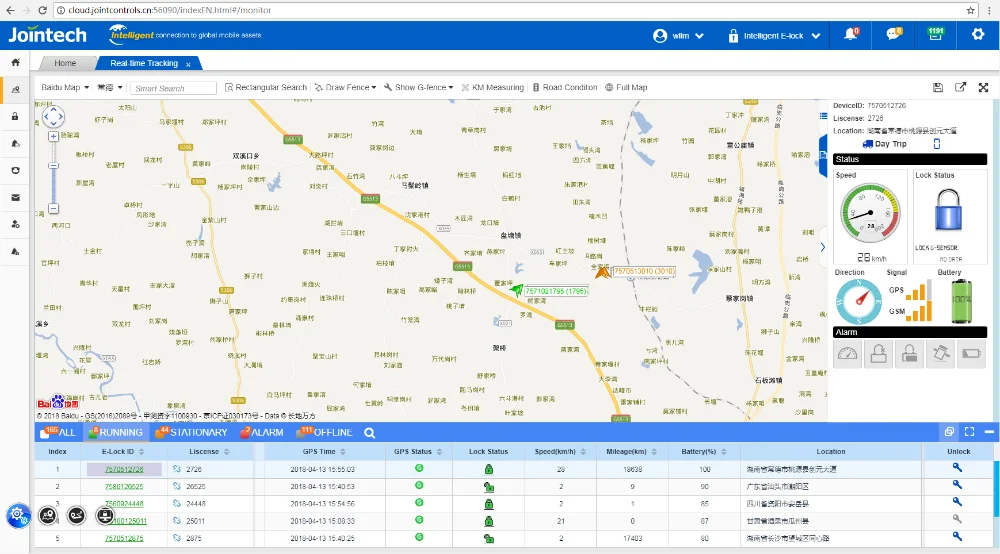

Monitoring platform

Monitoring platform of intelligent Electronic GPS lock-JT701

Jointech Platform includes five system including: Coupling and uncoupling system; Intelligent E-lock system; Fleet management system; Container control system; Intelligence Purvey system.

International Case

International Case of Intelligent GPS Electronic Lock-JT701

Jordan Customs department visited us in June 2017, signed with us  for customs supervision project(Jordan), JT701 will replace the old padlock from EU.

Jordan customs supervision project

Model: JT701


Functions Requirements:


The GPS electronic locks JT701 are used for customs supervision of containers, since JT701 can work for 2 months with a single charge, in addition, with RFID unseal option, different customs regulators can be authorized to monitor and manage containers that need to be supervised.

The project requires important features, such as, IP67, rope pull range 200kg, data encryption....etc, which fully satisfied the needs of the Jordan Customs.

Payment & Delivery

Payment & Delivery

We accept multi-channel payment method according to your requirement. And supports diversified modes of transport as shown in the left.

Our Service

Warranty

All the trackers from Jointech are with ONE-YEAR warranty.

After-Sales Service

Technical support/after sales service:
1). We have engineers online to provide technical support on time.
2). Free training is available in our company.
3). Technical assistance is also available for big project.

Our Company

Shenzhen Joint Technology Co., Ltd was established in 2006, registered trademark 'jointech', and formally listed on three new board in February 2016 , with stock code: 835897.

The company is focused on providing networking segments in mobile asset monitoring and management solutions, and is committed to become the industry's leading mobile asset management solution providers and operators. After years of development and accumulation, the company has developed a complete set of intelligent hardware and mobile asset management software cloud management platform, providing the market with software and hardware products and services, which is advanced, practical, and regard energy consumption and asset security management as the core value.

Leading by an engineer with more than 30 years experience in auto control field, our R&D team keep pace with the most advanced technology in the world, and developed many unique products and software with patents. The R&D team have been working closely with partners in these 55 countries and regions, also cooperated with graduate institutes from Shenzhen University, etc. Our R&D team is made up of more than 30 engineers with Senior and Midlevel technical qualification, and divided into: Hardware Group, Software Group, Testing Group, Project Group, and project planning group; Jointech keep putting 8% ~ 15% of sales volume into R&D every year.

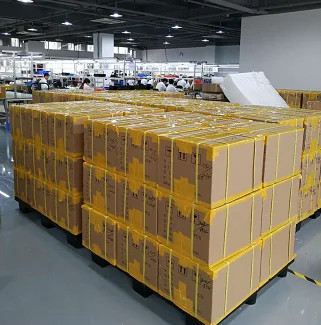

Jointech has build advanced assemble line with yearly capacity 100,000 fuel level sensors, The first automatic testing machine in China for high precision fuel level sensor with testing capacity 500pcs per day.
