GPS container lock with gps tracking for live tracking and door control

FOB Reference Price:Get Latest Price
$130.00 - $200.00 / Units | 1 Unit/Units (Min. Order)
Screen Size:
No screen
Color:
Memory Capacity:
512mb
Lead Time:
Quantity(Units) 1 - 5000 >5000
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 1000 Units)
Customized packaging (Min. Order: 1000 Units)
Report Suspicious Activity
Overview
Quick Details
Type:
Gps Tracker
Use:
Automotive
Function:
RFID
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Jointech
Model Number:
JT701
Warranty:
12 Months
Application:
Container, trailer, cargo, value assets control
Feature:
Real time tracking, remote door control, remote lock unlock
Battery:
3.7V 15000mAh Li-ion Battery
Network:
2G/3G
Waterproof:
IP67 Waterproof
Dual SIM:
supported
unlock option:
RFID, SMS, Software
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton / Plywood box
Port
Shenzhen
Lead Time :
Quantity(Units) 1 - 5000 >5000
Est. Time(days) 10 To be negotiated
Product Description

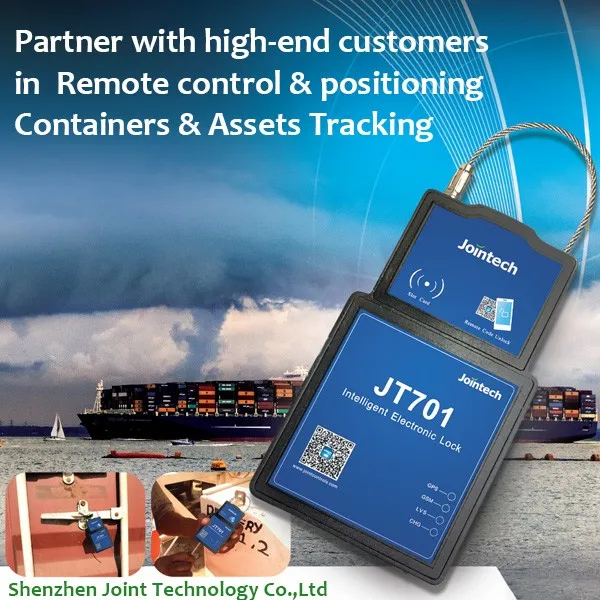

GPS container lock with gps tracking for live tracking and door control

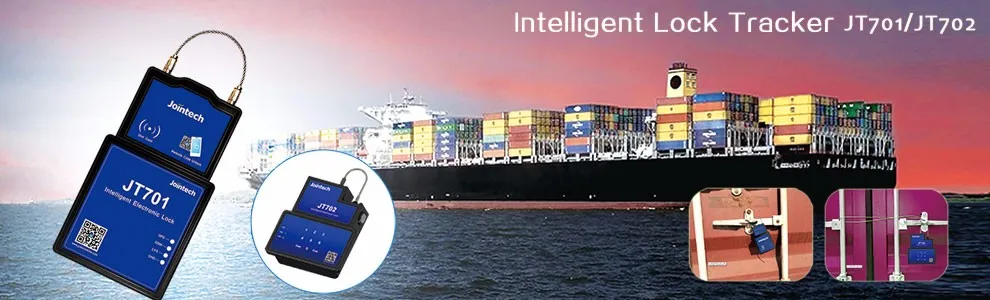

JT701 is a kind of GPS remote intelligent eseal lock tracker device, which is special designed for container tracking, monitoring and management solution. It is integrated with features of: micro electron controlling, RFID, GPS&GSM, etc.

Firstly, JT701 is a kind of GPS tracker device. It is inbuilt GPS, GSM module for container real time position tracking. It is inbuilt big capacity battery 15000mA, and has intelligent working mode for power & data flow saving. Waterproof IP67 for dust and water resistance, and it is good for outdoor hard environment application.

secondly, It is also a intelligent electronic lock device. It help monitor container door status, and keep security of cargo. Device is open by RFID card, SMS command, and GPRS. and it can support muti kinds of alarm: Swipe RFID card alarm, lock string cut off alarm, unlock alarm, lock alarm, geo fence alarm, etc.

SPECIFICATIONS


Dimension (LxWxH)
195 x 114 x 37mm
Weight
1.5kg (include standard accessories)
Case material
Engineering plastic
Parameters:
Built-in battery
15,000mAh rechargeable Lithium battery
Average standby current
< 0.1mA
Average working current
<90 mA


Protection grade
IP67 waterproof
GSM antenna
Built-in / 2G/3G
GPS antenna
Built-in

Main Features

1). Live GPS tracking;

2). Door locking status monitoring;

3). On site unlock by authorized RFID;

4). Remote unlock by SMS, Software;

5). Real time tamper alert for prompt response;

6). IP67 waterproof to be used outdoor;

7). Big battery lasts more than 7 days at 1 data/minute;

8). Easy to install with magnet base;

9). Adjustable metal string adapt to container, van truck, cargo and valuable assets.

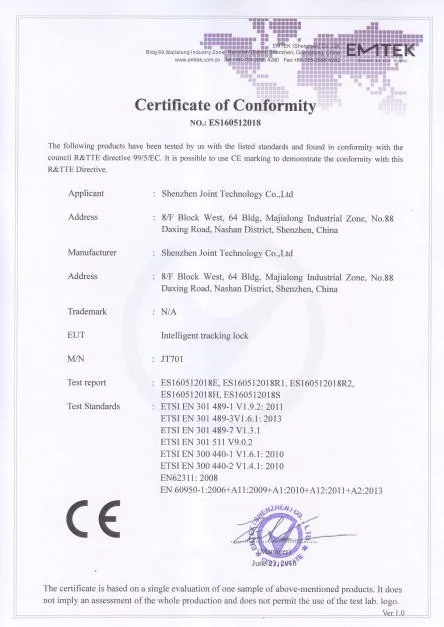

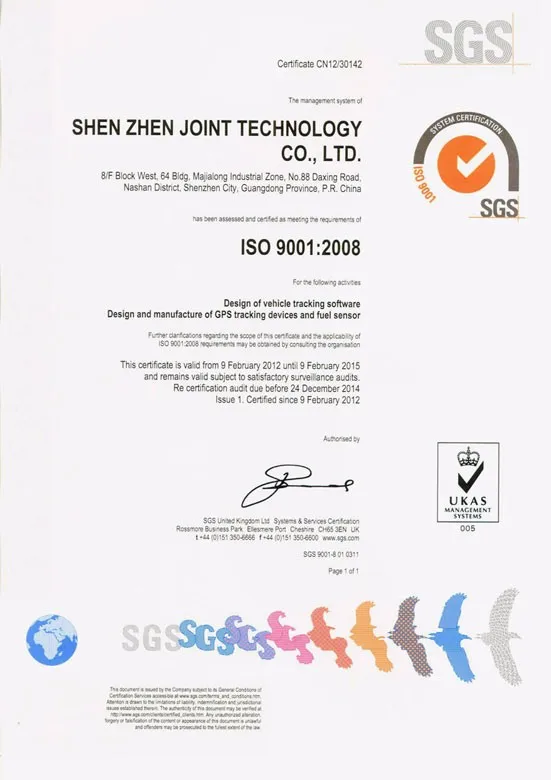

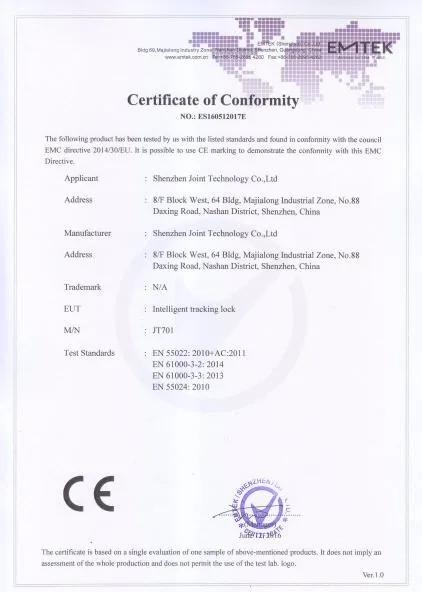

Certifications

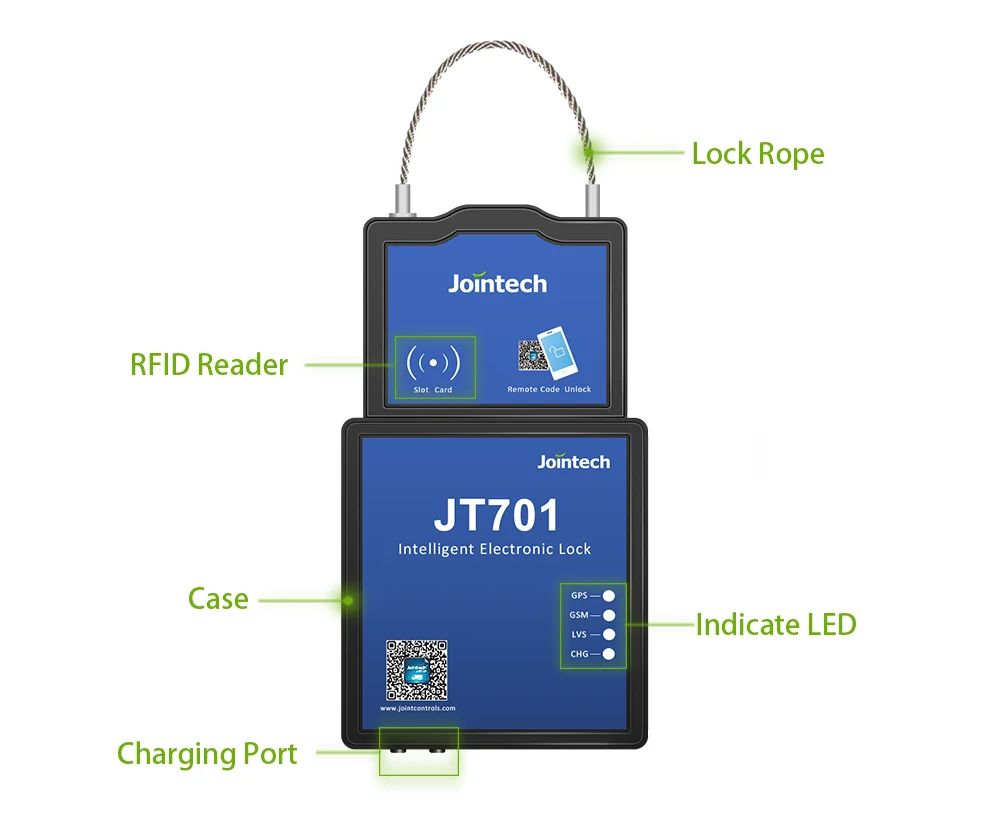

Detailed Images

Information available:

1). Position of the container is provided by the GPS function;
shown as a landmark on the map, and address or coordinate.
2). Door open/closed.
3). Battery charge level.
4). Indicate that the container door has been left open
or imply that there has been an attempt to break-in.

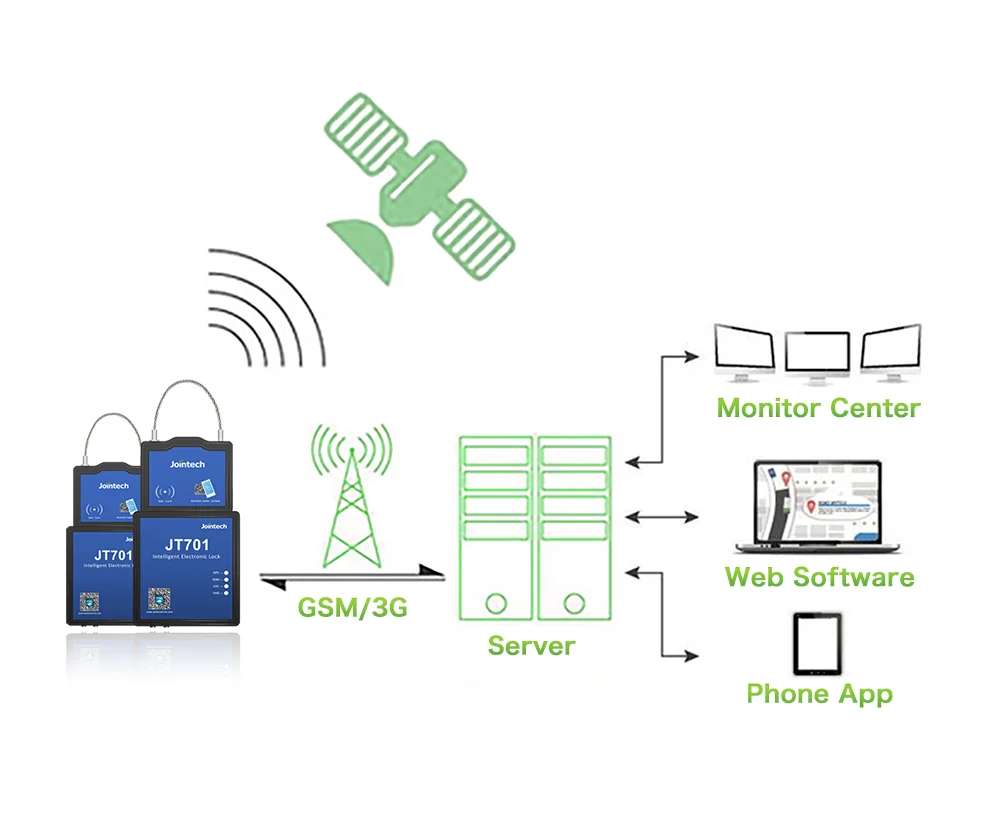

Working Principle:

1). Load the goods, Authorize the ID cards, Swipe the card and lock the door with JT701

2). On the road: JT701 will upload the position to the server, you can monitor it in computer or mobile in real time

3). Desitination: Swipe the card to unlock JT701 (or unlock with password via SMS, unlock with command via software)

4). Reports: Who, When, Where unlocked, trace, can be checked at any time

5). Alarms: Low battery alarm, Sting cut alarm, card swiping, unlocking, wrong password SMS, vibration, geofence

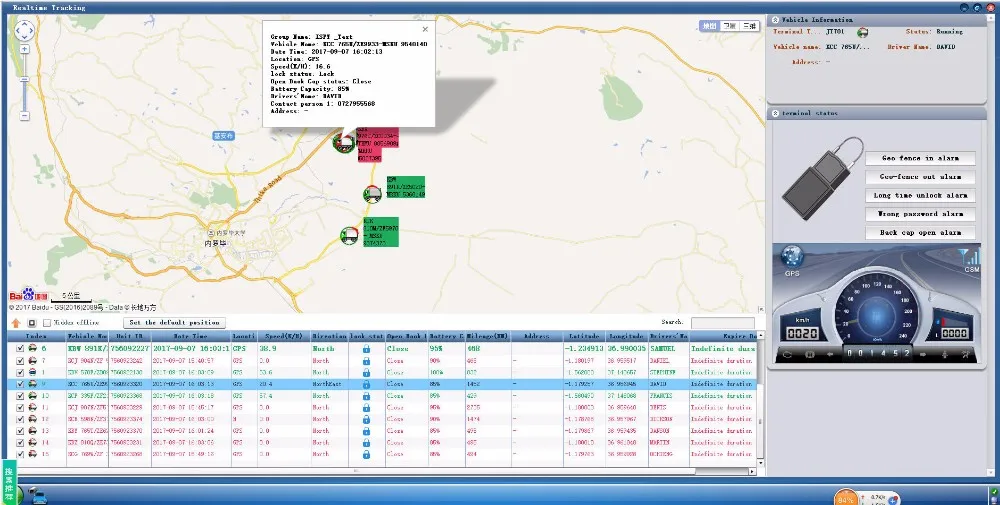

Monitoring platform

JOINTECH provide live online monitoring web based software and mobile app for you to tracking the mobile asset,  monitor the door status, and remotely control the door lock.

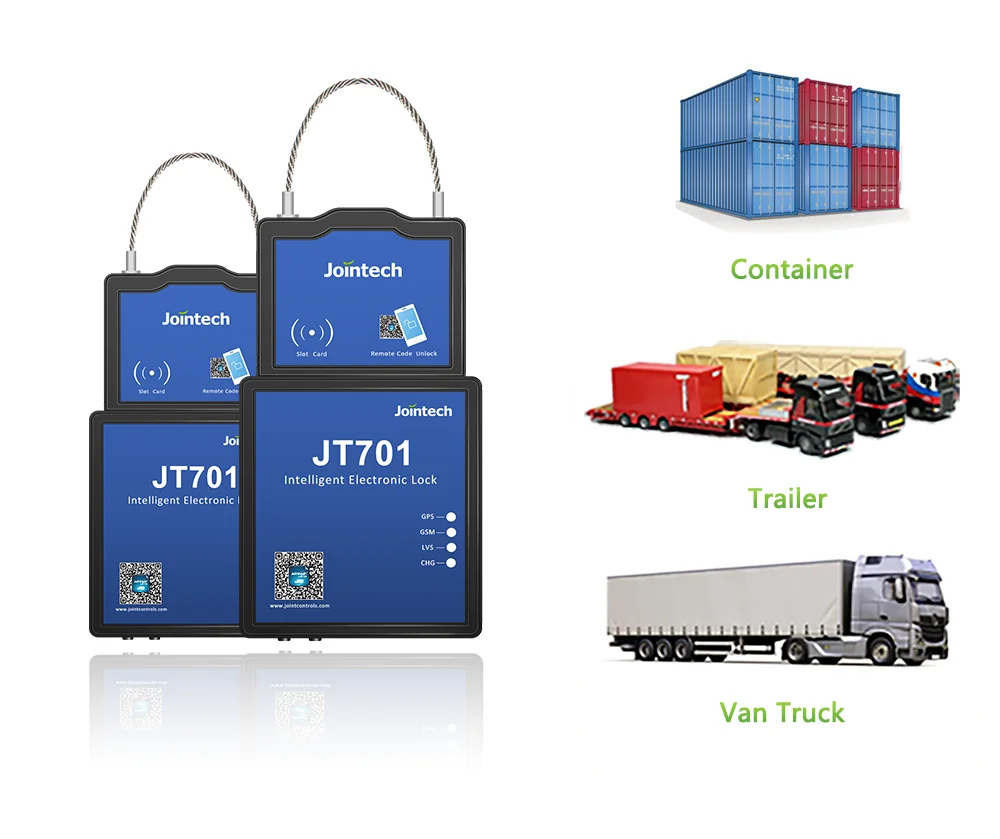

APPLICATION:

JT701 is widely used for outdoor mobile asset tracking, such as:
1.Customs/government inland container transportation supervision and tracking project.
2. logistic fleet van trucks door status monitoring and cargo security protecting solution.
3. trailer trucks monitoring.
4. ware house door status monitoring solution.

Our Service

Warranty

All the trackers from JOINTECH are with ONE year warranty.

After-Sales Service

Technical support/after sales service:
1). We have engineers online to provide technical support on time.
2). Free training is available in our company.
3). Technical assistance is also available for big project.

Packing & Delivery
Packaging
Size
50cm (L) * 39cm (W) * 31 (D)
Weight
1.2 T



Packaging Details
 15 units / carton
 20kg / carton

Packaging
Size
93cm (L) * 54cm (W) * 62 (D)
Weight
1.2 T



Packaging Details
150 units / box

200kg / box.
