Remote Fuel Monitoring Solution with fuel management system for multi-tank fuel monitoring

FOB Reference Price:Get Latest Price
$60.00 - $150.00 / Units | 1 Unit/Units (Min. Order)
Memory Capacity:
None
Report Suspicious Activity
Overview
Quick Details
Type:
Fuel Monitoring Solution
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Jointech
Model Number:
JT606
Function:
Fuel Monitoring
Certificate:
CE
System:
Fuel Management System
Outputs:
RS-232, RS-485, 0-5V, 4-20mA
Accuracy:
0.5%
Sealing:
IP67
Medium types:
All but conducting medium
Temperature-operating:
-40℃ ~ +85℃
Temperature-storge:
-40℃ ~ +105℃
Size:
Customized
Supply Ability
Supply Ability:
10000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Color box, carton or customized as you wish
Port
Shenzhen
Product Description

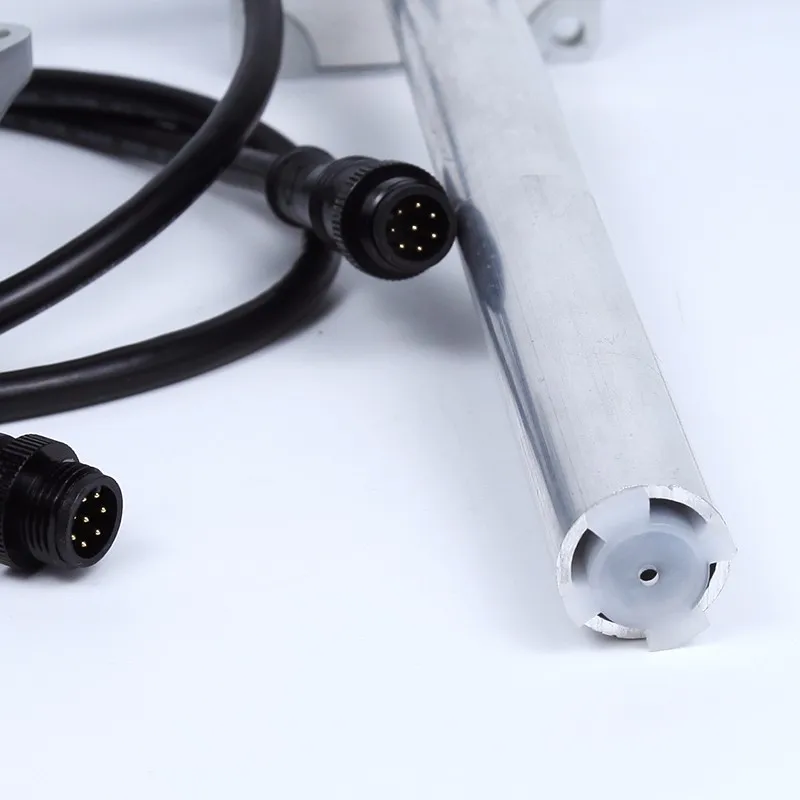

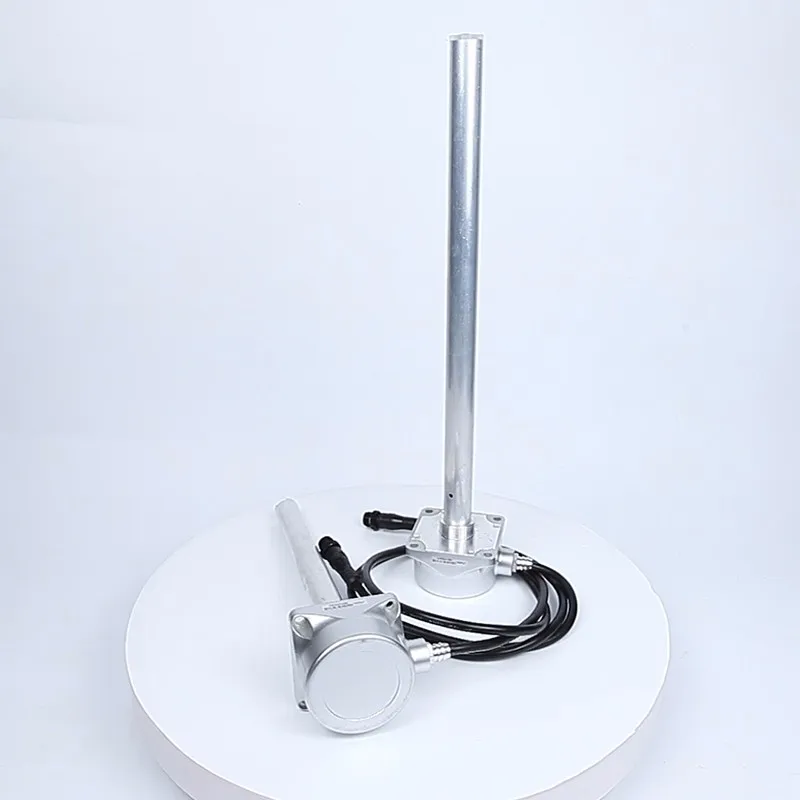

Fuel sensor JT606X  is a capacitance type of fuel sensor of high precision, the accuracy is 0.5% and the resolution is 1mm, Voltage type, Current type and Digital type are available.

Unique Features

1. With 3 technology patents
2. Wide power voltage input
3. Integrated structure without any elastic element
4. Push button field calibration for convenient use
5. Easy to install,can be cut off and detect fuel level continuously

Specifications
Collection Principle
Capacitance
Weight
40g (500mm)
Size
250mm, 400mm, 550mm, 650mm, 750mm, 950mm. Length can be customized.
Electrical Parameters
Input DC:4-70V
Power Consumption
0.13W/5V, 0.19W/12V, 0.38W/24V


Signal Output
(can be customized)
Voltage Output: 0~5V
Digital Output: RS-232\ RS-485,CAN(Op.)
Analog Resistant Output: 10~500 omega
Current Output: 4~20mA
Communication baud rate: 2400, 4800, 9600, 57600, 115200
Detection of Liquid Type
Diesel, bio diesel, kerosene, gasoline,etc

Not suitable for conducting medium

Use of the Environment
Work temperature: -40°C~+85°C
Storge temperature: -40°C~+105°C
Material
Aluminum alloy
Protection Class
IP67

Applications

 • Fleet fuel Management
 • Logistics & Courier fuel Monitoring
 • Taxi Group fuel control management
 • Government and Enterprise Vehicle Fuel Management
 • Transportation,Fresh Food,Cold Storage ,Construction,Fuel Companies Vehicle Fuel Monitoring

Standard Accessories

• Fuel Sensor
• Flange

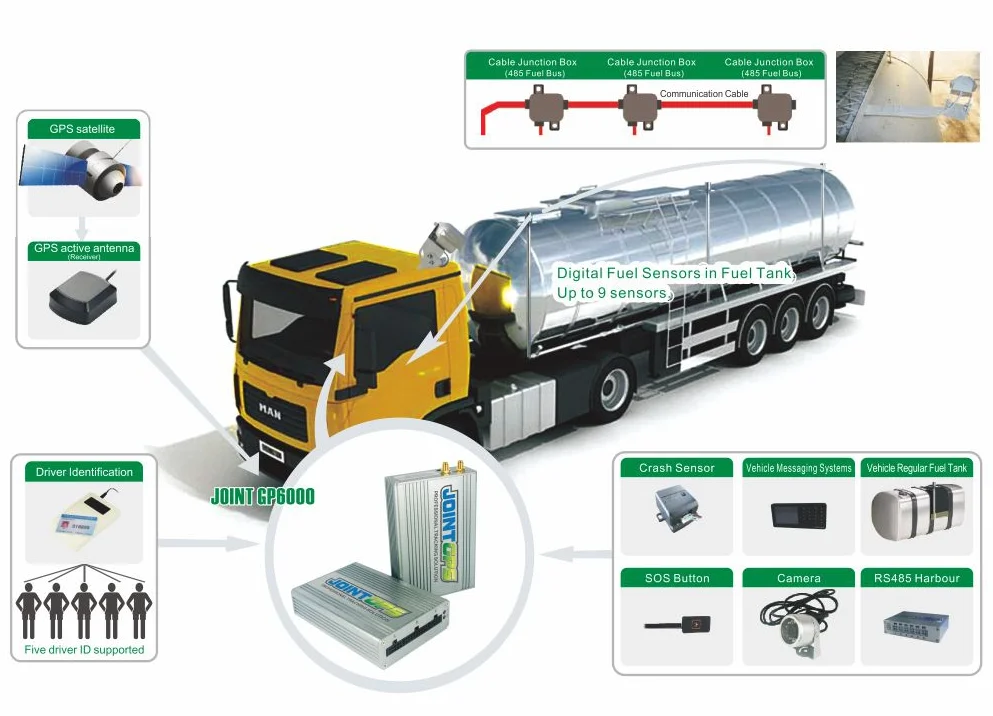

External Equipment

JT606X can conect with all the external equipment to meet customized needs.

Our Service

Warranty

All the trackers from Jointech are with ONE-YEAR warranty.

After-Sales Service

Technical support/after sales service:
1). We have engineers online to provide technical support on time.
2). Free training is available in our company.
3). Technical assistance is also available for big project.

Our Company

Shenzhen Joint Technology Co., Ltd was established in 2006, registered trademark 'jointech', and formally listed on three new board in February 2016 , with stock code: 835897.

The company is focused on providing networking segments in mobile asset monitoring and management solutions, and is committed to become the industry's leading mobile asset management solution providers and operators. After years of development and accumulation, the company has developed a complete set of intelligent hardware and mobile asset management software cloud management platform, providing the market with software and hardware products and services, which is advanced, practical, and regard energy consumption and asset security management as the core value.

Leading by an engineer with more than 30 years experience in auto control field, our R&D team keep pace with the most advanced technology in the world, and developed many unique products and software with patents. The R&D team have been working closely with partners in these 55 countries and regions, also cooperated with graduate institutes from Shenzhen University, etc. Our R&D team is made up of more than 30 engineers with Senior and Midlevel technical qualification, and divided into: Hardware Group, Software Group, Testing Group, Project Group, and project planning group; Jointech keep putting 8% ~ 15% of sales volume into R&D every year.

Jointech has build advanced assemble line with yearly capacity 100,000 fuel level sensors, The first automatic testing machine in China for high precision fuel level sensor with testing capacity 500pcs per day.

Product Description

Fuel sensor JT606X  is a capacitance type of fuel sensor of high precision, the accuracy is 0.5% and the resolution is 1mm, Voltage type, Current type and Digital type are available.

Unique Features

1. With 3 technology patents
2. Wide power voltage input
3. Integrated structure without any elastic element
4. Push button field calibration for convenient use
5. Easy to install,can be cut off and detect fuel level continuously

Specifications
Collection Principle
Capacitance
Weight
40g (500mm)
Size
250mm, 400mm, 550mm, 650mm, 750mm, 950mm. Length can be customized.
Electrical Parameters
Input DC:4-70V
Power Consumption
0.13W/5V, 0.19W/12V, 0.38W/24V


Signal Output
(can be customized)
Voltage Output: 0~5V
Digital Output: RS-232\ RS-485,CAN(Op.)
Analog Resistant Output: 10~500 omega
Current Output: 4~20mA
Communication baud rate: 2400, 4800, 9600, 57600, 115200
Detection of Liquid Type
Diesel, bio diesel, kerosene, gasoline,etc

Not suitable for conducting medium

Use of the Environment
Work temperature: -40°C~+85°C
Storge temperature: -40°C~+105°C
Material
Aluminum alloy
Protection Class
IP67

Applications

 • Fleet fuel Management
 • Logistics & Courier fuel Monitoring
 • Taxi Group fuel control management
 • Government and Enterprise Vehicle Fuel Management
 • Transportation,Fresh Food,Cold Storage ,Construction,Fuel Companies Vehicle Fuel Monitoring

Standard Accessories

• Fuel Sensor
• Flange

External Equipment

JT606X can conect with all the external equipment to meet customized needs.
